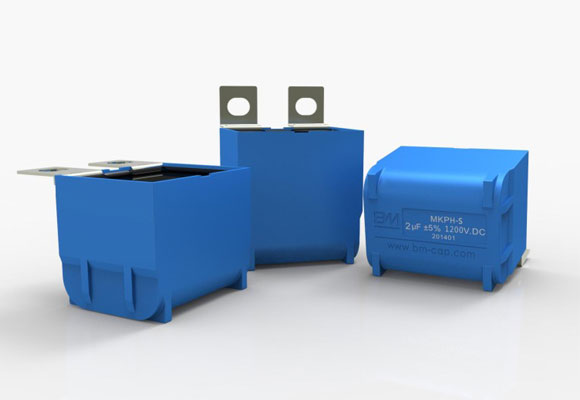

產品說明：
★特點
□阻燃塑殼封裝、阻燃環氧灌封
□高脈沖電流，高dv/dt承受能力
□等效串聯電阻小、雜散電感低
□耐壓高，損耗小，升溫低
★應用場合
□IGBT緩沖吸收
□廣泛用于電力電子設備中開關器件關斷時的尖峰電壓，尖峰電流吸收保護
★技術要求
|
引用標準 |
GB/T17702，IEC61071 |
|
|
氣候類別 |
40/105/21 |
|
|
工作溫度范圍（外殼） |
-40～105℃ |
|
|
電壓范圍 |
700 VDC～3000VDC |
|
|
容量范圍 |
0.0068μF～10μF |
|
|
容量允許偏差 |
±5%（J）/±10%（K） |
|
|
損耗角正切值 |
6×10-4 |
|
|
耐電壓 |
1.5Un（60S，20±5℃） |
|
|
絕緣電阻 |
≥100 000MΩ, Cn≤0.33μF ≥30 000s Cn＞0.33μF |
20±5℃ 500V.DC 60S |
|
過電壓 |
1.1Un 30% of on-load-dur.·0 |
|
|
1.15Un 30min/day |
||
|
1.2Un 5min/day |
||
|
1.3Un 1min/day |
||
|
最高使用海拔 |
2000m |
|
|
預期壽命 |
100 000h（Un，θhs=70℃） |
|
|
失效率 |
50FIT |
|
備注：如果海拔使用高度超過2000m，應該考慮海拔對對流冷卻和外絕緣的影響
★技術參數
|
700VDC (400VAC) |
|||||||||
|
Cn (μF) |
Dimension(mm) |
Ls (nH)
|
dv/dt (V/μs)
|
Ipeak (A)
|
Irms@70℃@100KHz（A） |
ESR@10KHz(mΩ) |
Part number |
||
|
L |
B |
H |
|||||||
|
1.0 |
42.5 |
24.5 |
27.5 |
25 |
325 |
325 |
15 |
3.2 |
1GSBH510D700-- |
|
1.2 |
42.5 |
24.5 |
27.5 |
25 |
325 |
390 |
16 |
3.1 |
1GSBH512D700-- |
|
1.5 |
42.5 |
22 |
30 |
25 |
325 |
487 |
18 |
2.8 |
1GSBH515D700-- |
|
2.0 |
42.5 |
33.5 |
35.5 |
25 |
325 |
650 |
22 |
2.5 |
1GSBH520D700-- |
|
2.0 |
42.5 |
28 |
37 |
25 |
325 |
650 |
22 |
2.5 |
1GSBH520D700-- |
|
2.2 |
42.5 |
33.5 |
35.5 |
25 |
325 |
715 |
22.5 |
2.4 |
1GSBH522D700-- |
|
2.2 |
42.5 |
28 |
37 |
25 |
325 |
715 |
22 |
2.4 |
1GSBH522D700-- |
|
2.5 |
42.5 |
33.5 |
35.5 |
25 |
325 |
812 |
24 |
2.2 |
1GSBH525D700-- |
|
2.5 |
42.5 |
28 |
37 |
25 |
325 |
812 |
23 |
2.2 |
1GSBH525D700-- |
|
3.0 |
42.5 |
33 |
45 |
25 |
325 |
975 |
26 |
2.1 |
1GSBH530D700-- |
|
3.0 |
42.5 |
30 |
45 |
25 |
325 |
975 |
26 |
2.1 |
1GSBH530D700-- |
|
3.3 |
42.5 |
33 |
45 |
25 |
325 |
1072 |
27 |
2.1 |
1GSBH533D700-- |
|
3.3 |
42.5 |
30 |
45 |
25 |
325 |
1072 |
26 |
2.0 |
1GSBH533D700-- |
|
3.5 |
42.5 |
33 |
45 |
25 |
325 |
1134 |
27 |
2.0 |
1GSBH535D700-- |
|
3.5 |
42.5 |
30 |
45 |
25 |
325 |
1134 |
26 |
2.0 |
1GSBH535D700-- |
|
4.0 |
57.5 |
30 |
45 |
35 |
220 |
880 |
27 |
2.3 |
1GSBH540D700-- |
|
4.0 |
42.5 |
33 |
45 |
25 |
325 |
1300 |
32 |
1.8 |
1GSBH540D700-- |
|
4.7 |
57.5 |
35 |
50 |
35 |
220 |
1034 |
31 |
2.1 |
1GSBH547D700-- |
|
4.7 |
57.5 |
30 |
45 |
35 |
220 |
1034 |
30.5 |
2.1 |
1GSBH547D700-- |
|
5.0 |
57.5 |
35 |
50 |
35 |
220 |
1100 |
31 |
2.1 |
1GSBH550D700-- |
|
5.0 |
57.5 |
30 |
45 |
35 |
220 |
1100 |
30.5 |
2.1 |
1GSBH550D700-- |
|
5.6 |
57.5 |
35 |
50 |
35 |
220 |
1232 |
32 |
2.0 |
1GSBH556D700-- |
|
6.8 |
57.5 |
35 |
50 |
35 |
220 |
1496 |
32 |
2.0 |
1GSBH568D700-- |
|
10 |
57.5 |
42.5 |
56 |
35 |
220 |
2200 |
33 |
1.5 |
1GSBH510D700-- |
|
850VDC (450VAC) |
|||||||||
|
Cn (μF) |
Dimension(mm) |
Ls (nH) |
dv/dt (V/μs) |
Ipeak (A) |
Irms@70℃@100KHz（A） |
ESR@10KHz (mΩ) |
Part number |
||
|
L |
B |
H |
|||||||
|
0.82 |
42.5 |
24.5 |
27.5 |
25 |
400 |
328 |
15 |
3.1 |
1GSBH482D850-- |
|
1.0 |
42.5 |
24.5 |
27.5 |
25 |
400 |
400 |
17.5 |
2.8 |
1GSBH510D850-- |
|
1.0 |
42.5 |
22 |
30 |
25 |
400 |
400 |
17 |
2.8 |
1GSBH510D850-- |
|
1.5 |
42.5 |
33.5 |
35.5 |
25 |
400 |
600 |
23 |
2.2 |
1GSBH515D850-- |
|
1.5 |
42.5 |
28 |
37 |
25 |
400 |
600 |
22 |
2.2 |
1GSBH515D850-- |
|
2.0 |
42.5 |
33.5 |
35.5 |
25 |
400 |
800 |
24 |
2.2 |
1GSBH520D850-- |
|
2.2 |
42.5 |
30 |
45 |
25 |
400 |
880 |
27 |
2.2 |
1GSBH522D850-- |
|
2.5 |
42.5 |
33 |
45 |
25 |
400 |
1000 |
27 |
2.0 |
1GSBH525D850-- |
|
2.5 |
42.5 |
30 |
45 |
25 |
400 |
1000 |
26.5 |
2.0 |
1GSBH525D850-- |
|
3.0 |
57.5 |
30 |
45 |
35 |
280 |
840 |
28 |
1.9 |
1GSBH530D850-- |
|
3.3 |
57.5 |
30 |
45 |
35 |
280 |
924 |
28.5 |
2.2 |
1GSBH533D850-- |
|
4.0 |
57.5 |
35 |
50 |
35 |
280 |
1120 |
30 |
2.1 |
1GSBH540D850-- |
|
4.7 |
57.5 |
35 |
50 |
35 |
280 |
1316 |
32 |
2.0 |
1GSBH547D850-- |
|
6.8 |
57.5 |
42.5 |
56 |
35 |
280 |
1904 |
33 |
1.6 |
1GSBH568D850-- |
|
1000VDC (500VAC) |
|||||||||
|
Cn (μF) |
Dimension(mm) |
Ls (nH) |
dv/dt (V/μs) |
Ipeak (A) |
Irms@70℃@100KHz（A） |
ESR@10KHz(mΩ) |
Part number |
||
|
L |
B |
H |
|||||||
|
0.68 |
42.5 |
24.5 |
27.5 |
25 |
500 |
340 |
15 |
3.3 |
1GSBH468D1000-- |
|
0.75 |
42.5 |
24.5 |
27.5 |
25 |
500 |
375 |
15.5 |
3.2 |
1GSBH475D1000-- |
|
1.0 |
42.5 |
28 |
37 |
25 |
500 |
500 |
17 |
3.0 |
1GSBH510D1000-- |
|
1.2 |
42.5 |
33.5 |
35.5 |
25 |
500 |
600 |
22 |
2.5 |
1GSBH512D1000-- |
|
1.2 |
42.5 |
28 |
37 |
25 |
500 |
600 |
21 |
2.5 |
1GSBH512D1000-- |
|
1.5 |
42.5 |
33.5 |
35.5 |
25 |
500 |
750 |
23.5 |
2.2 |
1GSBH515D1000-- |
|
2.0 |
42.5 |
33 |
45 |
25 |
500 |
1000 |
26.5 |
2.0 |
1GSBH520D1000-- |
|
2.2 |
57.5 |
30 |
45 |
35 |
350 |
770 |
26.5 |
2.5 |
1GSBH522D1000-- |
|
2.5 |
57.5 |
30 |
45 |
35 |
350 |
875 |
28 |
2.1 |
1GSBH525D1000-- |
|
3.0 |
57.5 |
35 |
50 |
35 |
350 |
1050 |
31 |
2.1 |
1GSBH530D1000-- |
|
3.3 |
57.5 |
35 |
50 |
35 |
350 |
1155 |
31 |
2.0 |
1GSBH533D1000-- |
|
5.0 |
57.5 |
42.5 |
56 |
35 |
350 |
1750 |
34 |
1.8 |
1GSBH550D1000-- |
|
1200VDC (600VAC) |
|||||||||
|
Cn (μF) |
Dimension(mm) |
Ls (nH) |
dv/dt (V/μs) |
Ipeak (A) |
Irms@70℃@100KHz（A） |
ESR@10KHz(mΩ) |
Part number |
||
|
L |
B |
H |
|||||||
|
0.22 |
42.5 |
24.5 |
27.5 |
25 |
650 |
143 |
11.5 |
5.3 |
1GSBH422D1200-- |
|
0.22 |
42.5 |
15 |
26 |
25 |
650 |
143 |
11 |
5.2 |
1GSBH422D1200-- |
|
0.33 |
42.5 |
24.5 |
27.5 |
25 |
650 |
210 |
12 |
5.2 |
1GSBH433D1200-- |
|
0.33 |
42.5 |
15 |
26 |
25 |
650 |
210 |
11.5 |
5.1 |
1GSBH433D1200-- |
|
0.39 |
42.5 |
24.5 |
27.5 |
25 |
650 |
254 |
13 |
4.6 |
1GSBH439D1200-- |
|
0.39 |
42.5 |
17 |
28 |
25 |
650 |
254 |
12.5 |
4.6 |
1GSBH439D1200-- |
|
0.47 |
42.5 |
24.5 |
27.5 |
25 |
650 |
308 |
14 |
4.1 |
1GSBH447D1200-- |
|
0.47 |
42.5 |
22 |
30 |
25 |
650 |
308 |
13 |
4.1 |
1GSBH447D1200-- |
|
0.56 |
42.5 |
22 |
30 |
25 |
650 |
364 |
14 |
3.8 |
1GSBH456D1200-- |
|
0.56 |
42.5 |
24.5 |
27.5 |
25 |
650 |
364 |
15 |
3.5 |
1GSBH456D1200-- |
|
0.68 |
42.5 |
33.5 |
35.5 |
25 |
650 |
442 |
19 |
3.3 |
1GSBH468D1200-- |
|
0.82 |
42.5 |
33.5 |
35.5 |
25 |
650 |
533 |
20 |
3.1 |
1GSBH482D1200-- |
|
1.0 |
42.5 |
33.5 |
35.5 |
25 |
650 |
650 |
20.5 |
2.8 |
1GSBH510D1200-- |
|
1.2 |
42.5 |
33 |
45 |
25 |
650 |
780 |
24 |
2.5 |
1GSBH512D1200-- |
|
1.2 |
42.5 |
30 |
45 |
25 |
650 |
780 |
23 |
2.5 |
1GSBH512D1200-- |
|
1.5 |
42.5 |
33 |
45 |
25 |
650 |
975 |
25 |
2.2 |
1GSBH515D1200-- |
|
1.5 |
42.5 |
30 |
45 |
25 |
650 |
975 |
24.5 |
2.2 |
1GSBH515D1200-- |
|
2.0 |
57.5 |
30 |
45 |
35 |
455 |
910 |
27 |
1.8 |
1GSBH520D1200-- |
|
2.2 |
57.5 |
35 |
50 |
35 |
455 |
1001 |
30 |
2.4 |
1GSBH522D1200-- |
|
2.2 |
57.5 |
30 |
50 |
35 |
455 |
1001 |
29 |
2.4 |
1GSBH522D1200-- |
|
2.5 |
57.5 |
35 |
50 |
35 |
455 |
1138 |
32 |
2.3 |
1GSBH525D1200-- |
|
3.0 |
57.5 |
35 |
50 |
35 |
455 |
1365 |
32 |
2.1 |
1GSBH530D1200-- |
|
4.5 |
57.5 |
42.5 |
56 |
35 |
455 |
2047 |
33 |
1.8 |
1GSBH545D1200-- |
|
1600VDC/1700VDC (650VAC) |
|||||||||
|
Cn (μF) |
Dimension(mm) |
Ls (nH) |
dv/dt (V/μs) |
Ipeak (A) |
Irms@70℃@100KHz（A） |
ESR@10KHz(mΩ) |
Part number |
||
|
L |
B |
H |
|||||||
|
0.22 |
42.5 |
24.5 |
27.5 |
25 |
880 |
194 |
13.5 |
5.5 |
1GSBH422D1600-- |
|
0.22 |
42.5 |
17 |
28 |
25 |
880 |
194 |
13 |
5.4 |
1GSBH422D1600-- |
|
0.33 |
42.5 |
24.5 |
27.5 |
25 |
880 |
290 |
14 |
5.0 |
1GSBH433D1600-- |
|
0.33 |
42.5 |
22 |
30 |
25 |
880 |
290 |
14 |
5.0 |
1GSBH433D1600-- |
|
0.47 |
42.5 |
33.5 |
35.5 |
25 |
880 |
413 |
19 |
3.9 |
1GSBH447D1600-- |
|
0.47 |
42.5 |
28 |
37 |
25 |
880 |
413 |
18 |
3.9 |
1GSBH447D1600-- |
|
0.56 |
42.5 |
33.5 |
35.5 |
25 |
880 |
492 |
20 |
3.2 |
1GSBH456D1600-- |
|
0.56 |
42.5 |
28 |
37 |
25 |
880 |
492 |
20 |
3.2 |
1GSBH456D1600-- |
|
0.68 |
42.5 |
33.5 |
35.5 |
25 |
880 |
598 |
20 |
2.8 |
1GSBH468D1600-- |
|
0.82 |
42.5 |
33 |
45 |
25 |
880 |
721 |
23 |
2.5 |
1GSBH482D1600-- |
|
0.82 |
42.5 |
30 |
45 |
25 |
800 |
721 |
20 |
2.5 |
1GSBH482D1600-- |
|
1.0 |
57.5 |
30 |
45 |
35 |
610 |
610 |
24 |
2.8 |
1GSBH510D1600-- |
|
1.2 |
57.5 |
30 |
45 |
35 |
610 |
732 |
27 |
2.8 |
1GSBH512D1600-- |
|
1.5 |
57.5 |
35 |
50 |
35 |
610 |
915 |
29 |
2.6 |
1GSBH515D1600-- |
|
2.2 |
57.5 |
42.5 |
56 |
35 |
610 |
1342 |
32 |
1.8 |
1GSBH522D1600-- |
|
2000VDC (700VAC) |
|||||||||
|
Cn (μF) |
Dimension(mm) |
Ls (nH) |
dv/dt (V/μs) |
Ipeak (A) |
Irms@70℃@100KHz（A） |
ESR@10KHz(mΩ) |
Part number |
||
|
L |
B |
H |
|||||||
|
0.1 |
42.5 |
24.5 |
27.5 |
25 |
1000 |
100 |
8 |
14 |
1GSBH410D2000-- |
|
0.15 |
42.5 |
24.5 |
27.5 |
25 |
1000 |
150 |
7.5 |
13.5 |
1GSBH415D2000-- |
|
0.22 |
42.5 |
24.5 |
27.5 |
25 |
1000 |
220 |
12 |
5.2 |
1GSBH422D2000-- |
|
0.22 |
42.5 |
22 |
30 |
25 |
1000 |
220 |
11 |
5.2 |
1GSBH422D2000-- |
|
0.33 |
42.5 |
33.5 |
35.5 |
25 |
1000 |
330 |
17 |
4.2 |
1GSBH433D2000-- |
|
0.33 |
42.5 |
28 |
37 |
25 |
1000 |
330 |
16 |
4.2 |
1GSBH433D2000-- |
|
0.39 |
42.5 |
33.5 |
35.5 |
25 |
1000 |
390 |
18 |
3.8 |
1GSBH439D2000-- |
|
0.39 |
42.5 |
28 |
37 |
25 |
1000 |
390 |
17.5 |
3.8 |
1GSBH439D2000-- |
|
0.47 |
42.5 |
33 |
45 |
25 |
1000 |
470 |
22 |
3.2 |
1GSBH447D2000-- |
|
0.47 |
42.5 |
28 |
37 |
25 |
1000 |
470 |
20 |
3.3 |
1GSBH447D2000-- |
|
0.56 |
42.5 |
33 |
45 |
25 |
1000 |
560 |
23 |
3.0 |
1GSBH456D2000-- |
|
0.68 |
57.5 |
30 |
45 |
35 |
700 |
476 |
23 |
3.5 |
1GSBH468D2000-- |
|
1.0 |
57.5 |
35 |
50 |
35 |
700 |
700 |
28 |
2.8 |
1GSBH510D2000-- |
|
1.2 |
57.5 |
35 |
50 |
35 |
700 |
840 |
30 |
2.6 |
1GSBH512D2000-- |
|
1.8 |
57.5 |
42.5 |
56 |
35 |
700 |
1260 |
35 |
2.0 |
1GSBH518D2000-- |
|
3000VDC (800VAC) |
|||||||||
|
Cn (μF) |
Dimension(mm) |
Ls (nH) |
dv/dt (V/μs) |
Ipeak (A) |
Irms@70℃@100KHz（A） |
ESR@10KHz(mΩ) |
Part number |
||
|
L |
B |
H |
|||||||
|
0.047 |
42.5 |
24.5 |
27.5 |
25 |
1600 |
75 |
4.5 |
17 |
1GSBH347D3000-- |
|
0.068 |
42.5 |
24.5 |
27.5 |
25 |
1600 |
108 |
9 |
17 |
1GSBH368D3000-- |
|
0.1 |
42.5 |
33.5 |
35.5 |
25 |
1600 |
160 |
12 |
6.0 |
1GSBH410D3000-- |
|
0.15 |
42.5 |
33.5 |
35.5 |
25 |
1600 |
240 |
15 |
6.0 |
1GSBH415D3000-- |
|
0.22 |
42.5 |
33 |
45 |
25 |
1600 |
352 |
18 |
1.5 |
1GSBH422D3000-- |
|
0.22 |
42.5 |
30 |
45 |
25 |
1600 |
352 |
17 |
1.5 |
1GSBH422D3000-- |
|
0.33 |
57.5 |
30 |
45 |
35 |
870 |
288 |
22 |
4.2 |
1GSBH433D3000-- |
|
0.47 |
57.5 |
35 |
50 |
35 |
870 |
408 |
23 |
3.8 |
1GSBH447D3000-- |
|
0.56 |
57.5 |
35 |
50 |
35 |
870 |
487 |
23 |
3.8 |
1GSBH456D3000-- |
|
0.82 |
57.5 |
42.5 |
56 |
35 |
870 |
714 |
30 |
3.0 |
1GSBH482D3000-- |
|
1.0 |
57.5 |
42.5 |
56 |
35 |
870 |
870 |
30 |
2.8 |
1GSBH510D3000-- |
|
1.2 |
57.5 |
42.5 |
56 |
35 |
870 |
1044 |
35 |
2.5 |
1GSBH512D3000-- |
|
1.5 |
57.5 |
42.5 |
56 |
35 |
870 |
1305 |
35 |
2.2 |
1GSBH515D3000-- |
